Chapter 30, Problem 040The inductance of closely packed coil of 430 turns is 8.7 mH Calculate the magnetic flux through the coil when the current is 5,7 mA_NumberUn...

Question

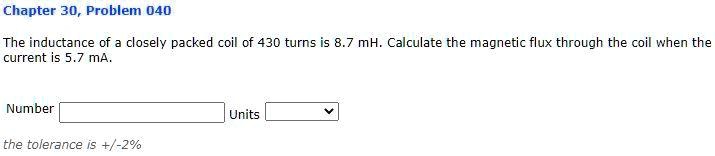

Chapter 30, Problem 040The inductance of closely packed coil of 430 turns is 8.7 mH Calculate the magnetic flux through the coil when the current is 5,7 mA_NumberUnitsthe tolerance is +/-2%f

Chapter 30, Problem 040 The inductance of closely packed coil of 430 turns is 8.7 mH Calculate the magnetic flux through the coil when the current is 5,7 mA_ Number Units the tolerance is +/-2%f



Answers

The inductance of a closely packed coil of 400 turns is
8.0 $\mathrm{mH} .$ Calculate the magnetic flux through the coil when the
current is 5.0 $\mathrm{mA} .$

Hi, everyone. Here it is. Given calculate magnetic flux through the area and closed by 300 tons off induct INTs. 7.20 Milly handed. We have to convert it. Andy. Quite when correct Off 10 million. Pierre is flowing through it. That is 10 in tow. 10 to the power off. Minus three appeared. Floods is defined. Eight. Yeah, and I upon end. Got it. L is indoctrinates. I is current. Yeah, number of France's 300. So it will be 2.4 in tow. 10 to the power minus. Save it Islami to the square through each turn or you may right 2 40 Nano Tesla meters square through each turn. That's all for this problem. Thanks for watching it.

For this problem on the topic of inductive, we have a coil that has 300 tons and an inductions of 7.2 million Hendry's and when the current in the coil is 10 million piers, we want to find the magnetic flux through the area enclosed by this coil. Now we know the inductions of the coil, L. Is equal to the number of turns in the coil in and the flux through each turn five B divided by the current in the coil. I if we rearrange this equation, we can solve for the magnetic flux vibe and this is the induct inzell terms of current I divided by the number of turns in and so if we put our values into this equation, this is seven 0.2 times 10 to the minus three Henry's times the current of 10 millions, or 10 times 10 to the minus three and piers divided by the number of turns in this coil, which is 300 and we get the magnetic flux through the area enclosed by the coil to be 2.4 times 10 to the minus seven. Weber's

Why the given problem number of turns the coil Are given us and is equal to 400. Its inductive evidence is given as L. is equal to eight 0.0 millie Henry and current passing through a. That is given as 5.0 millie I am here you're using expression for their total flux link through the coil, Y is equal to L into I. This total magnetic flux will be given by putting the values for the self injections as aid zero into 10 for -300. And for current this is 510 Into 10 days, 4 -3. I'm here. His total flux linked to the coil comes out to be 40 micro. However, we can say or initially we should write it water into Candace Bahr -6 Weber Which now can build an S 40 micro there. But this is not total flux soul. The flux linked through the coil means one ton of the coil, magnetic flux that will be given us total flux provided by a number of turns. Is this is Hottie micro vapor Divided by a number of currents, which is 400. So yeah, answer for the given problem will be 0.1 might grow that box the flux, the magnetic flux link through one turn of quite. Thank you.

To the electromagnetic induction in which we have number of tons and equals 2-40 and carrying current I equals to 3 50 million M. Pierre. That is equal to 0.350 mps. Okay if the magnetic flux through the coil is five equals to 0.75 waiver. Then we have two coil calculate the coils inductions. That is help. Okay, so we know that the netflix and five. This is equals two L manipulated by from the theory of self induction. So from here we get self induction help equals two N five divided by current. I So substituting values so we get L equals two and which is to 40 multiplied by five which is 0.75 Weber developed by current high which is 0.350 mps. Okay, so from here after solving we get inducted of the coil help. That is equal to 514.3 Henry. Okay, so this becomes the answer for this question. Okay.
