Would you use a large inductance or a large capacitance in series with a system to filter out low frequencies, such as the 100 Hz hum in a sound system? Explain....

Question

Would you use a large inductance or a large capacitance in series with a system to filter out low frequencies, such as the 100 Hz hum in a sound system? Explain.

Would you use a large inductance or a large capacitance in series with a system to filter out low frequencies, such as the 100 Hz hum in a sound system? Explain.



Answers

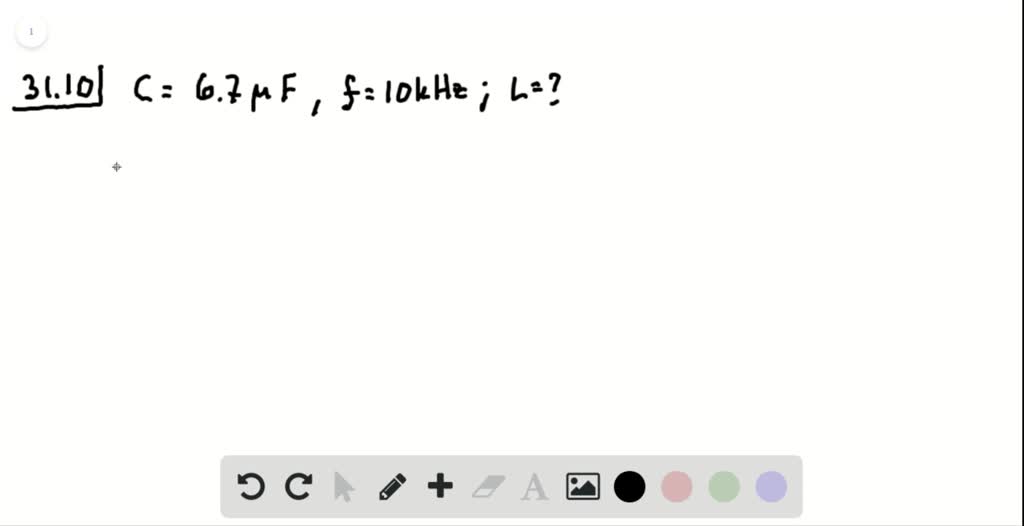

$L C$ oscillators have been used in circuits connected to loudspeakers to create some of the sounds of electronic music. What inductance must be used with a 6.7$\mu \mathrm{F}$ capacitor to produce a frequency of 10 $\mathrm{kHz}$ , which is near the middle of the audible range of
frequencies?

31.90. We, uh, haven't induct er whose value we know one point 3,000,000 Henry's. And we want a knell c circuit that oscillated three point by killer hurts. So you want to figure out the value of the capacitor So and start with omega is one over the square root of Elsie. So we find the see he's going to be won over Omega squared l omega, as usual. Is this too high? F? This case is squared, so we get that we want a capacitor with a value of 1.59 micro.

In this question, we have a capacitor and an inductive and two setups. In the first attack, the two components are connected in Siri's and in the second set up, the two components are connected in parallel. And then, given that we are at the high frequency limit, which one off the setups will give us the higher out good current. So you have to remember the following at the limit Off high frequencies, a capacitor behaves just like an idea wire and then in Dr Behaves just like an open switch. So applying these approximation to both the tops, we have the following. The setup number one is equivalent to an open circuit on no current flow through an open circuit. So I want will be close to zero in the second set up. We have I need an idea why here and unopened circuit. So in the second set up, the current can flow from these brains off the circuit. Therefore, we will have some current here, Then in the second set up, that current is bigger. So by connecting the street components in parallel, one gets a bigger current

So here we know that the formula for the inductive reactant ce we can say except l inductive reactant would be equal to pi times the frequency times Al the induct in CE and so solving for the induction ce this would be equaling. They react the inductive reactant ce divided by two pi times of frequency. So this is gonna be equaling 2 20 1000 arms divided by two pi times the frequency of 500 hertz. Again, we have 20 Killy ums or be consistent 20,000 arms divided by two pi times 500 hertz And we find that all the induction CE is equaling 6.3 six Henry's. This would be our final answer. That is the end of the solution. Thank you for

So we want Inductive Captain's, which is equal to to kill over. That is 2001 on Dhe. We want this at the frequency off 15 killer hoods. That is 15,000 boots. So let's use the formula. This is for the part, eh? Issues the formula. Excel equals two pi and l. So l will be equal to 2000. So I'm substituting the vanity off Excel divided by two times high. F frequency is 15,000 hopes. So if you solve this, you'll find the answer is 0.0 212 Henry, this is 2.12 So So 21.2 Millie Henry. So this is the minimum of captains one must use to produce high resistance for this noise. So in part, we were asked what will be the reactors for 60 hertz? So the reactions now is equal to again the same formula to pi l. But in this case, frequencies 60 hertz and inductions. As we know from the last calculation, it's 0.21 too. If you saw this, you will get a room as you can see for low frequency in Doctor has very low resistance for high frequency in doctor has very high resistance, so that's why in doctor can be used as noise canceling device in many circuits.
