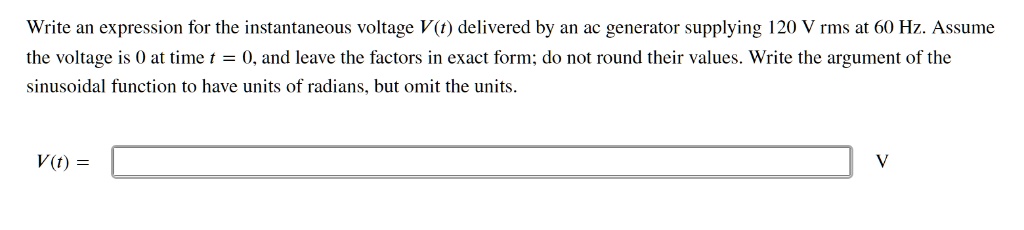

Write an expression for the instantaneous voltage V(t) delivered by an ac generator supplying 120 V rms at 60 Hz. Assume the voltage is 0 at time = 0,and leave the ...

Question

Write an expression for the instantaneous voltage V(t) delivered by an ac generator supplying 120 V rms at 60 Hz. Assume the voltage is 0 at time = 0,and leave the factors in exact form; do not round their values. Write the argument of the sinusoidal function to have units of radians, but omit the unitsV(t)

Write an expression for the instantaneous voltage V(t) delivered by an ac generator supplying 120 V rms at 60 Hz. Assume the voltage is 0 at time = 0,and leave the factors in exact form; do not round their values. Write the argument of the sinusoidal function to have units of radians, but omit the units V(t)



Answers

In the United States, a standard electrical outlet supplies sinusoidal electrical current with a maximum voltage of $V=120 \sqrt{2}$ volts $(\mathrm{V})$ at a frequency of 60 cycles per second. Write an equation that expresses $V$ as a function of the time $t,$ assuming that $V=0$ if $t=0$

Hi In the given problem, RMS voltage is given as we are. MS is equal 220 fold. So peak voltage will be given by route to times of Farmers voltage means this is 120 into route to world And frequency is given as 60 heart. So using the equation, the standard equation of alternating voltage, which varies as a function of time and given as VT is equal to we not into sign to buy ft. So here it will be VT for we know this is 120 route to wall into sign to buy into frequency, which is 60 B. So finally it to me were given ass we D. is equal 220 route to hold into sign. 120 by P. Which is the answer for this given problem here. Thank you.

In this question were given some information about a function for voltage. We have V of tea equals 120. Sign of 120. Hi, three. So we're finding out the amplitude. Well, we see the amplitude is going to be 1 20 So this is question A So amplitude is 1 20 the period we're looking at this horizontal compression. So we will divide to pie by 120 pie, which gives us 1 60 year. So a period is going to be 1/60 and now we're gonna graph two periods of this function. So we're starting at zero, and we're going down to negative 1 20 and up to positive 1 20 And then this would be 1/60. And here we have one 30th and then we're gonna graph this like, usual sine function. So we go up and down and then come up through 1/60 and then repeat. So we go up down on up through 1/30 and then this would continue. But here are two periods of this graph V. Now the next thing we're looking at is homes Law, where we have V equals I. You are where I is, Theo. The current and are is resistance. And in this example we have here we have V and are is 20. So in order to find the function for I were going to be dividing be by 20 so we can scroll down. So the divided by 20 is I of tea, which equals six. Because we have won 20 redivide by 20 we are left with six sign of 1 20 Hi t And now we're going to draw this function. So we have the amplitude, which is six. So the amplitude of six and a period of 1/60 because we have the same horizontal compression. So the period is one 60th Now when we here, I'll screw up a little bit. Now when we graph this, it's gonna look pretty similar to what we have above adjust with. Our new guidelines are new amplitude. We're just six instead of 1 20 And then we have 1/60 and one 30th they were gonna be drawing. That's pretty much the same just with these as our, uh, guidelines. So we come up and down and then through zero at 1/60. So that's the first period. And then we repeat up 3 1/30 on this would continue. But here we have two periods of our function. I of tea, which is six. Sign 1 20 high tea. So we've graft both I of t and V f t. So there are your answers.

So we first have the given output voltage. We can say beasts of Al is gonna be equaling 1.20 times 10 to the second bolts. Or better yet, we can simply say 120 volts multiplied by sine of 30 pie t where the induct Ince's equaling half of 1.500 Henry's And so we can say for party by inspection, Omega is equaling 30 tie radiance per second. And so we find that then the frequency F is equaling omega divided by two pi and 30 pie. Divide by two pi 15 0.0 hurts. This would be your answer for part A for part B. Then we find that the maximum voltage is equaling 120 volts. So we can say that the R M s voltage felt visa. L are a mess is equaling 120 volts that maximum voltage divided by radical too. And so this is equaling 84.9 volts. This would be our answer for part B for part C. Then we want to find the inductive reactant ce This would be equaling to pi multiplied by the frequency times Al the induct INTs. This would be simply omega times l. So this would be equaling 30 pie radiance per second multiplied by point 500 Henry's And this is giving us 47.1 comes. So this would be our answer for part C for part D. Then we can say that the Army's current will be equaling the arm s voltage divided by the inductive reactant CE. And so this would be equaling 84.9 volts. Divided by 47.1 comes. This is equaling 1.80 and peers or amps, and we find that then the maximum current would simply be equaling. The arm s current won't supplied by radical too. So this would be 1.80 amps multiplied by radical, too giving us 2.55 m's. This would be our answer for Part E four part F. We know that here the face difference between the voltage across the induct er and the current through the induct er would be because they fisa bell equaling 90 degrees. So here the average power delivered to the induct er would be equaling the army's current multiplied by the R M s voltage multiplied by co sign of FISA bell. And as you can see, this is gonna be zero. So this would be equaling zero watts. This would be our answer for part F four parts G. Now, excuse me when I sign your soul, you Saudi sold all my apologies. Voltage with a peak value is applied two in Dr the current through the induct er also varies sign of soldierly with with respect to time And so with the same frequency as the applied voltage, we know that the again the maximum current is gonna be equaling the maximum voltage divided by the inductive reactant ce. However, we can say current lags behind the voltage in phase by 1/4 cycle or pie over to radiance. And so we can say that if the voltage is given as dealt to the max, the maximum current multiplied by sine of omega t, the current as a function of time would be I equaling the maximum current times sign of omega T minus pi over too. And so, in the case of the conductor that they're giving us here, we could say that the current I would be equaling 2.55 amps multiplied by sine of 30. Hi t minus. Pi over too. This would be our final answer for part G for part h. We can say when eyes equaling positive 1.0 and peers. We can say that. Then we have that sign of 30 pie t minus pi over too is gonna be equaling 1.0 and peers divided by 2.55 amps. And so we can then say that 30 pie t equaling Rather 30 pie t minus pi over to is gonna be equaling arc sine of 1.0 divided by 2.55 And this is giving us Excuse me. 0.403 radiance. And now T is gonna be equaling pie over to radiance plus 0.403 radiance. And this would be divided by 30 pie radiance per second. And we find that this is equaling 2.9 times 10 to the negative second seconds. This would be our final answer for part H. That is the end of the solution. Thank you for watching

And a C. Source that has RMS value. We are a mess equals to 1 20 volts and it will taste goes from zero to its maximum value in time. T equals to 4.20 milliseconds. Okay, so now first of all calculating peak value from here so peak value we're not equals to two times of RMS value. So we get underway to MacLeod by 1 20. So from here we get 1 70 Wolf. No, This time from 0 to peak maximum value or peak value is always equals to T by 4 30 by four is equal to 4.20 milliseconds. Where capital is time? Period of time, Is he? So so from here we get time period equals two 16.8 million seconds. Okay now the angle of frequency omega can be calculated as two by by capital T. So substituting the day of T. Here. So we get 16.8 manipulated by million second, which is 10 to the power minus three seconds. Okay, So from here, after solving We get angular frequency omega equals to 374 radiant per second. Okay, so this is the angular frequency of the source. Okay. No, the expression for the world is will be equals to be not sign omega. Okay. So now substituting all the values so we get equals to be not, which is equals to 1 70 world. So 1 17 year old Sine Omega which is 374 and time T. So this is the expression for the voltage at any time. Okay, so this is the expression for the required questions. Okay?
