# Read the following description very carefully and then create and fully label diagram of the situation: Once you have diagram; please determine the amount that the ...

## Question

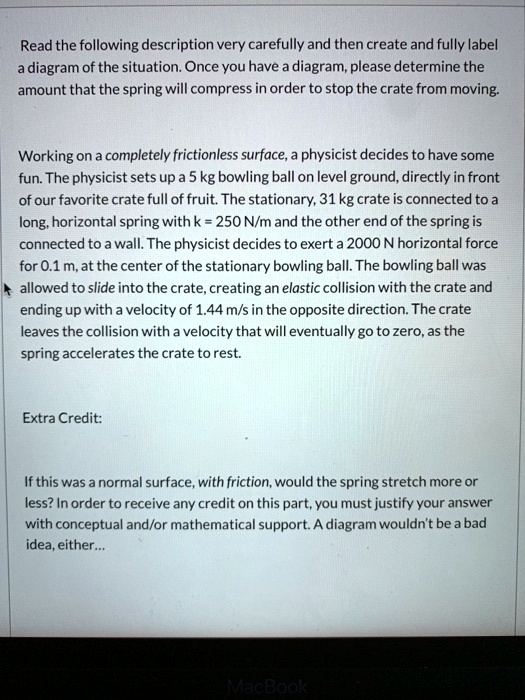

###### Read the following description very carefully and then create and fully label diagram of the situation: Once you have diagram; please determine the amount that the spring will compress in order to stop the crate from moving:Working on a completely frictionless surface, physicist decides to have some fun: The physicist sets up 5 kg bowling ball on level ground, directly in front of our favorite crate full of fruit: The stationary; 31kg crate is connected to a long; horizontal spring with k 250 N/

Read the following description very carefully and then create and fully label diagram of the situation: Once you have diagram; please determine the amount that the spring will compress in order to stop the crate from moving: Working on a completely frictionless surface, physicist decides to have some fun: The physicist sets up 5 kg bowling ball on level ground, directly in front of our favorite crate full of fruit: The stationary; 31kg crate is connected to a long; horizontal spring with k 250 N/m and the other end of the spring is connected to wall: The physicist decides to exert 2000 N horizontal force for 0.1m,at the center of the stationary bowling ball: The bowling ball was allowed to slide into the crate, creating an elastic collision with the crate and ending up with velocity of 1.44 mls in the opposite direction: The crate leaves the collision with a velocity that will eventually g0 to zero,as the spring accelerates the crate torest: Extra Credit: If this was normal surface;with friction; would the spring stretch more or less? In order to receive any credit on this part; YOU must justify your answer with conceptual and/or mathematical support A diagram wouldn't be= bad idea;either_. MacBool
